Solids Processing Train

An MSMPR population-balance crystallizer (nucleation/growth from supersaturation), plus filter, centrifuge, dryer, mill, cyclone, screen, ESP, and granulator unit ops — the crystallize → filter → dry → finish train a minerals/pharma/battery-materials plant runs.

solidscrystallizermsmpr

Concept

The crystallize → filter → dry → finish train a minerals/pharma/battery-materials plant runs. The crystallizer is the physics-heavy step: a steady-state MSMPR (Mixed-Suspension Mixed-Product-Removal) population balance, not a fixed-yield shortcut.

The math

Show the governing equations

B = k_b\,\Delta C^{\,b}, \quad G = k_g\,\Delta C^{\,g} \quad \text{(nucleation, growth)}

\bar{L} = G\,\tau \quad \text{(mean crystal size, moment-closed)}

B/G close against a solute mass balance for the supersaturation ΔC; m0..m3 population moments follow, giving mean crystal size and solid rate.

Execution

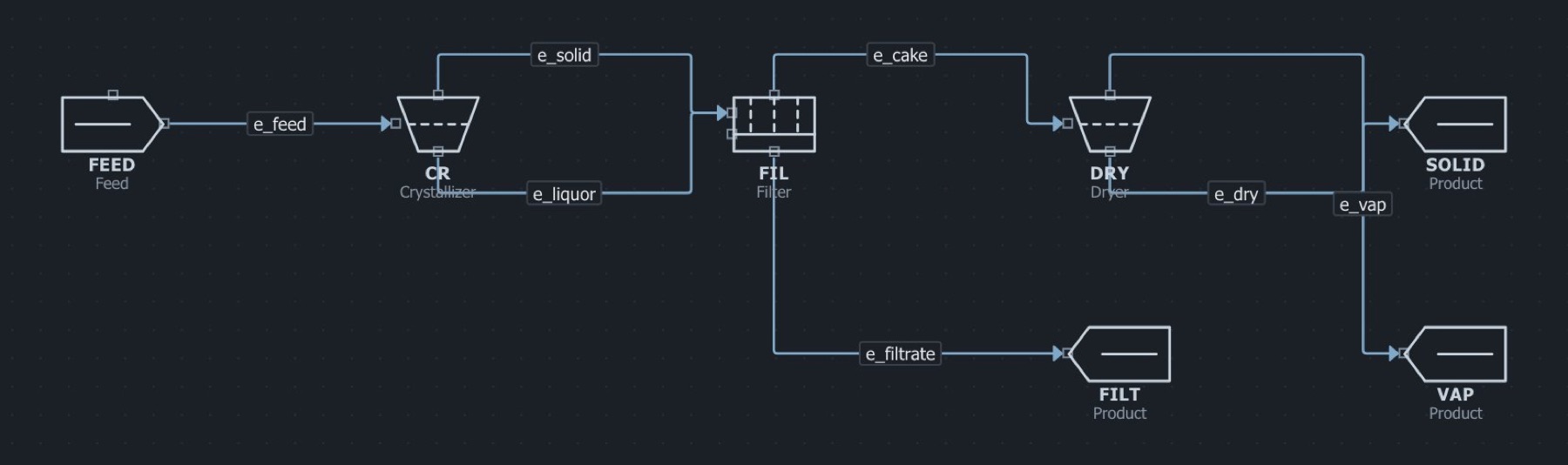

The solids train flowsheet in the MaximaLabs workbench

The example as it opens in the workbench. Click to enlarge.
